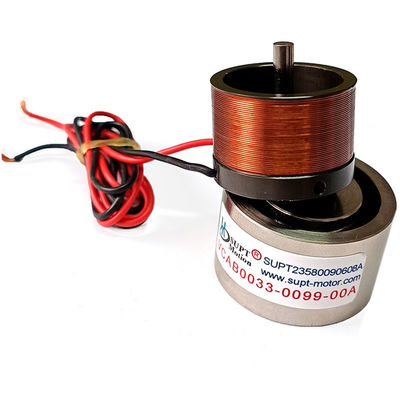

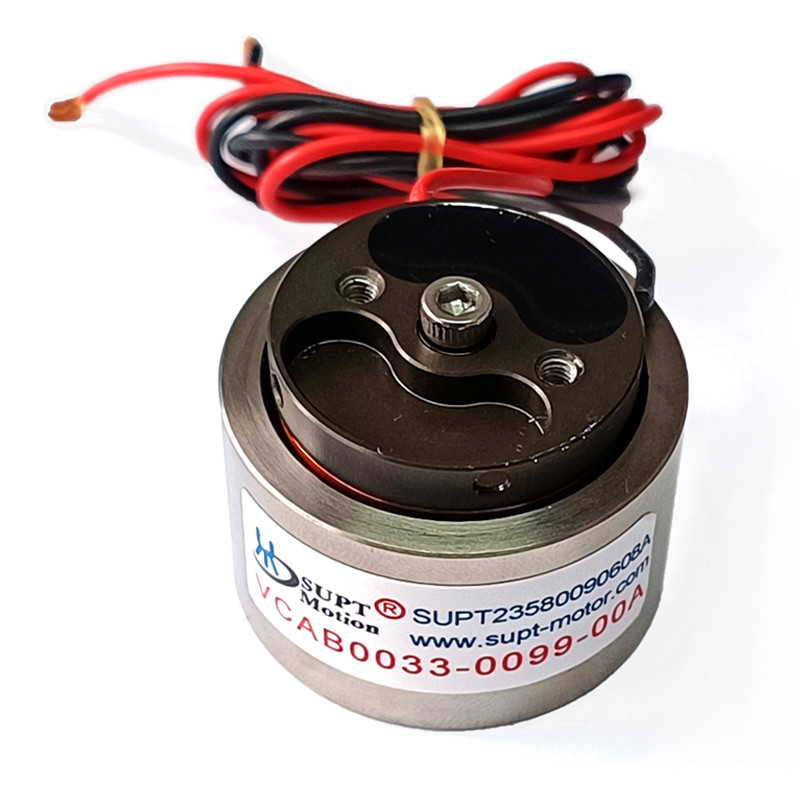

24V High Response Linear Voice Coil Motor For 3C Electronics Assembly

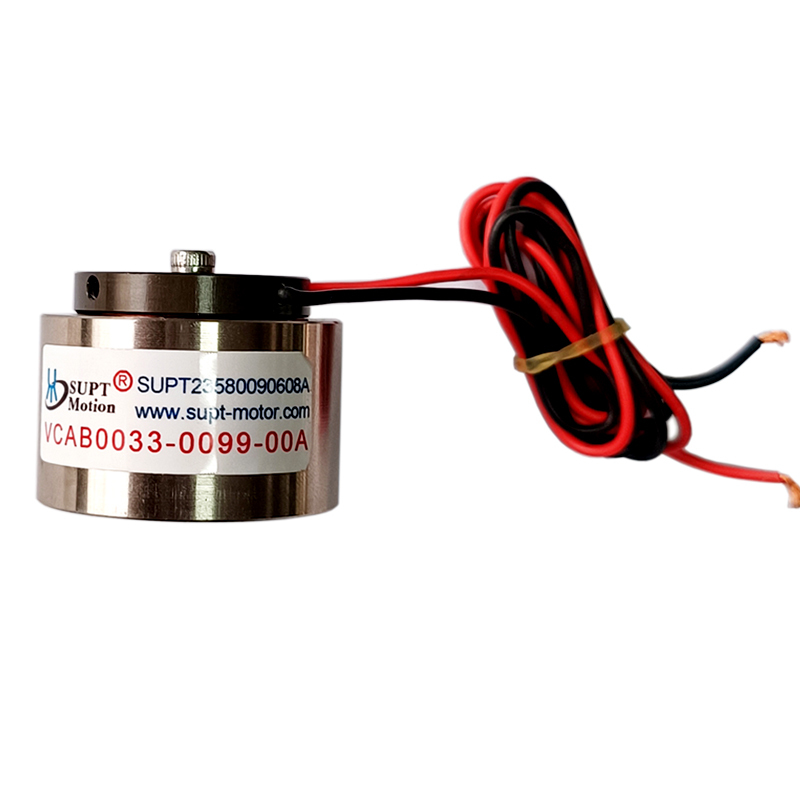

  • 24V High Response Linear Voice Coil Motor For 3C Electronics Assembly

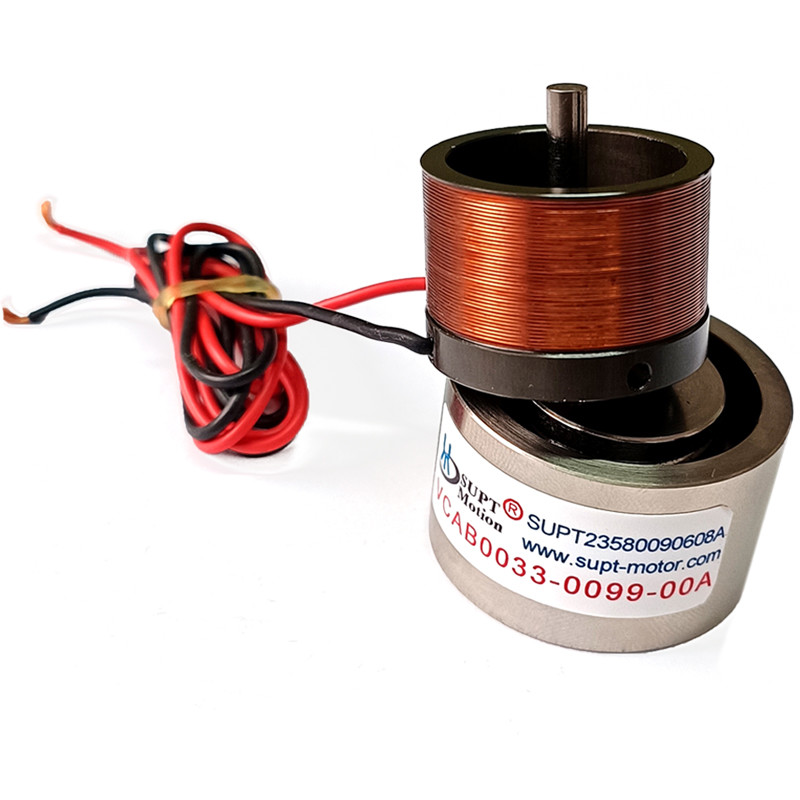

  • 24V High Response Linear Voice Coil Motor For 3C Electronics Assembly

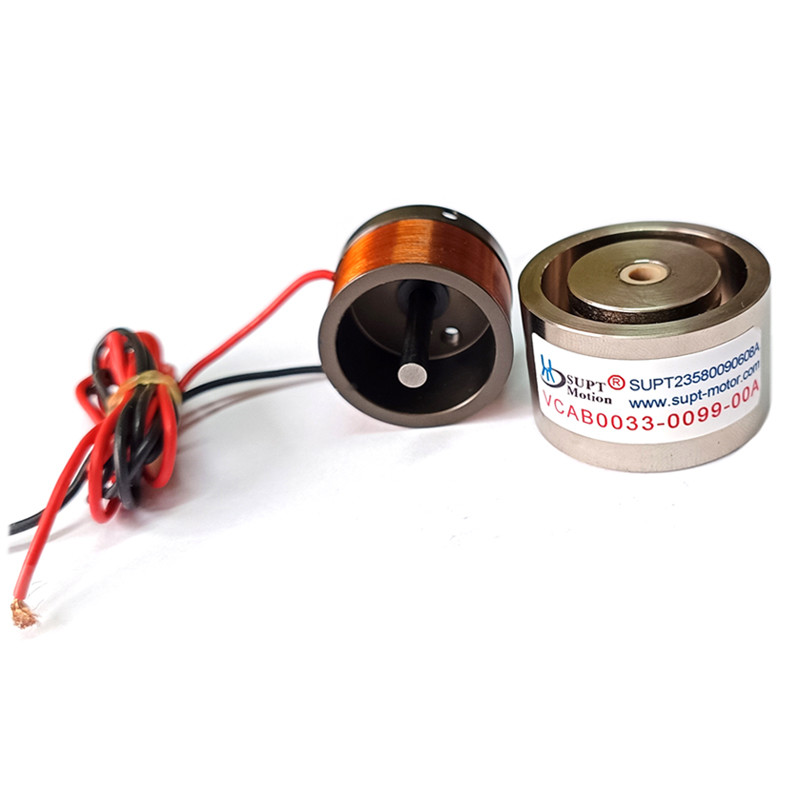

  • 24V High Response Linear Voice Coil Motor For 3C Electronics Assembly
  • 24V High Response Linear Voice Coil Motor For 3C Electronics Assembly
Lugar de origen China, Suzhou
Nombre de la marca SUPT MOTION
Certificación ISO9001,CE,3C
Número de modelo Serie de VCAB
Cantidad de orden mínima 2 piezas
Precio $102-$160
Detalles de empaquetado Embalaje personalizado, etc.
Tiempo de entrega 1-5 piezas, 5 días. > 20 piezas, a negociar
Condiciones de pago T/T
Capacidad de la fuente Para ser negociado

Éntreme en contacto con gratis las muestras y los vales.

WhatsAPP:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Garantía 3 meses-1 año Modelo de producto VCAB0033-0099-00A: el número de unidades de producción de las que se trate.
Peso (g) 5.87 Fuerza máxima (N) 33
Carga total (mm) 9.9 Ventajas de las máquinas de ensayo 24
Solicitud Producto automático Precisión del posicionamiento Alto
Tipo de producto motor de bobina de voz linear Conmutación Cepillar
Fuerza continua (N) 8N Campos de aplicación Electrónica 3C, semiconductores, automatización, óptica, equipos de inspección
Deja un mensaje
Descripción de producto

Product Description:

SUPT VCAB series linear voice coil motors are direct-drive actuators specifically designed for high-speed, micron-level precision motion. Featuring a coreless design, they achieve advanced performance including high frequency response, high speed, high acceleration, high precision, frictionless operation, and zero backlash. They are widely used in 3C manufacturing, visual inspection, semiconductors, medical instruments, and scientific research equipment.

Linear Voice Coil Motors have become one of the most essential precision actuators in the 3C electronics industry due to their high frequency response, ultra-precise positioning, high acceleration, and frictionless motion structure. As smartphones, tablets, wearables, and laptops continue to evolve toward thinner form factors and higher consistency, automation equipment requires micron-level accuracy and millisecond-level dynamic performance. Linear Voice Coil Motors are uniquely suited to meet these demanding requirements.

In 3C assembly processes, Linear Voice Coil Motors are widely used in high-speed pick-and-place systems, precision press-fit stations, laser welding, dispensing control, FPC alignment, camera module production, OIS calibration, and display module assembly. Thanks to their direct-drive linear force output, with no cogging, no backlash, and no mechanical transmission, Linear Voice Coil Motors provide nanometer-level positional resolution. This enables highly stable motion for tasks that require extremely fine alignment, precise press-fit depth control, or real-time trajectory adjustments.

Features:

  • 9.9 mm stroke suitable for rapid short-distance motion
  • High frequency response for fast inspection and micro-adjustment
  • High thrust density enabling strong acceleration
  • Coreless structure with zero cogging
  • 24V input for easy industrial integration
  • Compact and lightweight for embedded modules and fixtures

General Specifications (Varies by Model)

  • Rated Voltage: 24V
  • Continuous Force: 8 N
  • Peak Force: 33 N
  • Stroke: 5–60 mm / customizable
  • Frequency Response: ≥ 100 Hz
  • Repeatability: ≤1–3 µm
  • Structure: Coreless coil + high-energy magnet array
  • Cooling: Natural convection (air/liquid cooling optional)

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter Shaft end thread
(mm)
VCAB0005-0039-00A 5 1.5 3 5.4 0.9 23 29.5 M2(Outer)
VCAB0005-0050-00A 5 2.2 3.9 14.5 3.1 27 31.5 M2.5(Outer)
VCAB0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 M3(Outer)
VCAB0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 M3(Outer)
VCAB0015-0127-00A 15 4.9 12.7 21.5 4.1 12.5 30.5 Shaft ∮4.8
VCAB0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 M3(Outer)
VCAB0022-0448-00A 22 11.4 44.8 14.3 4 52 48 M3(Inner)
VCAB0032-0050-00A 32 8.9 5 29.3 7.1 48 40 M3(Inner)
VCAB0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 M3(Outer)
VCAB0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 M3(Inner)
VCAB0035-0105-00A 35 15.6 10.5 11.9 5 91 50 M3(Inner)
VCAB0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 M3(Inner)
VCAB0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 M3(Inner)
VCAB0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 M3(Outer)
VCAB0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 M3(Inner)
VCAB0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 M3(Inner)
VCAB0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 M3(Inner)
VCAB0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 shaft ∮10
VCAB0088-0191-00A 88.5 23.2 19.1 29.9 8 162 50.8 M3(Inner)
VCAB0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 M3(Inner)
VCAB0113-0089-00A 113 35 8.9 31 17.5 125 73 shaft ∮8
VCAB0262-0112-00A 262 111 11.2 35.1 41 285 71 shaft ∮10
VCAB0262-0249-00A 262 112 24.9 28.2 26 785 66 shaft ∮8
VCAB0294-0498-00A 294 56.8 49.8 114 24.5 685 93 shaft ∮10
VCAB0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 shaft ∮10
VCAB0436-0250-00A 436 167 25 31.6 37.2 775 78.4 shaft ∮10
VCAB0445-0300-00A 445 185 30 33 35 920 76.2 shaft ∮10

24V High Response Linear Voice Coil Motor For 3C Electronics Assembly 0

Applications:

  • Precision assembly & micro-positioning
  • Optical alignment modules
  • Compact test machines
  • Medical analysis / microfluidics
  • Research laboratory stages



24V High Response Linear Voice Coil Motor For 3C Electronics Assembly 1





Etiquetas:

Motor de bobina de voz lineal de 2500N

Motor de bobina de voz lineal de alta resolución

Actuador de voz lineal de alta capacidad de carga
