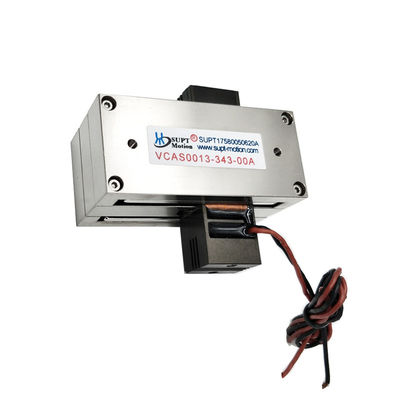

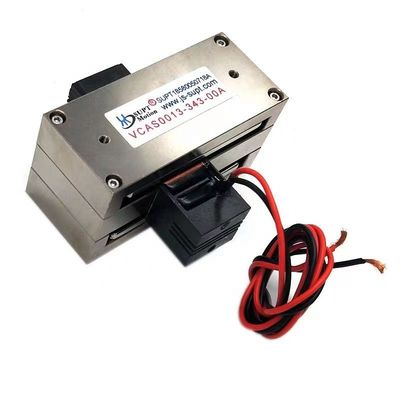

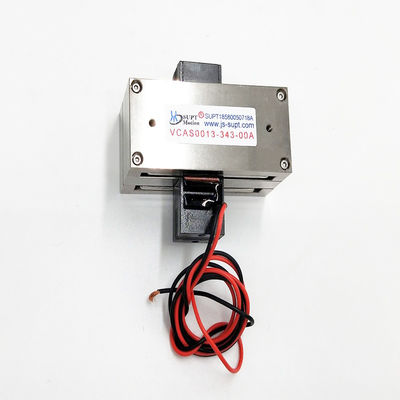

13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control

  • 13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control
  • 13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control
  • 13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control
  • 13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control
Lugar de origen China,Suzhou
Nombre de la marca SUPT MOTION
Certificación CE, ISO9001，CCC
Número de modelo Serie VCAS
Cantidad de orden mínima 1 Uds.
Precio $99-$220
Detalles de empaquetado Embalaje personalizado, etc.
Tiempo de entrega 1-5 unidades, 5 días. >20 piezas, a negociar
Condiciones de pago T/T
Capacidad de la fuente Para ser negociado
Datos del producto
Función de protección Totalmente cerrado Número de modelo VCAS0013-0343-00A
Método de control Electrónico Accidente cerebrovascular total 34.3m m
Construcción Imán permanente Fuerza máxima 13N
Tamaño 68,3×60×34,8 milímetros Palabras clave Motores lineales de bobina de voz
Voltaje 12,6 V peso de la bobina 40g
Velocidad Velocidad máxima en rpm
Deja un mensaje
Descripción de producto

Product Description:

The VCAS series Rectangular Actuators have a lower force per weight than the Cylindrical Actuators.But they also have a much longer strokes Forces range up to 1000N and 250mm .
Rectangular Actuator are the ideal solution for X-Y Axis movements and their major market is in the semiconductor and micro machine tool industries.

The VCAS0013-0343-00A model of this rectangular voice coil motor has a peak thrust of 13 N and a total stroke of 34.3 mm, making it suitable for proportional valve actuation, medium-load positioning, and active damping systems. Its rated continuous thrust at 25°C is 8 N, ensuring reliable operation even in harsh environments.

In fluid control valve applications, proportional solenoid valves often suffer from hysteresis and limited bandwidth. In contrast, rectangular voice coil motors feature a linear force-current relationship throughout their operating stroke and are free from magnetic saturation, enabling precise flow regulation. The VCAS0013-0343-00A can directly replace solenoid valves in gas or liquid valves, offering faster response times and lower power consumption.

This product can also serve as a Z-axis actuator for light-force crimping or spring testing. The 34.3 mm stroke accommodates a wide range of workpiece sizes, while the 13 N peak force is sufficient to meet the demands of light-duty riveting or contact force control.

Features:

  • Peak Force:13N

  • Continuous Force @25℃: 8N

  • Total Stroke: 34.3mm

  • Max Voltage: 12.6 V

  • Back EMF Constant: 5.8V/m/s

  • Coil Weight: 40 g

  • Dimensions (L×W×H): 68.3×60×34.8 mm

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Length
(mm)		 Width
(mm)		 Height
(mm)
VCAS0002-0498-00A 2.1 1.3 50 11.3 1.3 15 72 42.6 33
VCAS0002-0747-00A 2.1 1.3 74.7 11.3 1.3 15 100.5 42.6 37
VCAS0006-0030-00A 6.1 3.2 3 13.3 4.6 18.2 25.1 34.1 27
VCAS0006-0099-00A 6.1 3.2 10 13.7 4.6 18.2 33.5 34.1 26.9
VCAS0013-0343-00A 13 8 34.3 12.6 5.8 40 68.3 60 34.8
VCAS0065-1000-00A 65 22.4 100 28.7 9.7 135 170 59.6 81.9





VCAS0013-0343-00A:

Parameter value Parameter value
Model VCAS0013-0343-00A Peak thrust 13N
Continuous Thrust (25°C) 8N Total stroke 34.3mm
Maximum Voltage 12.6V Back-EMF constant 5.8V/m/s
Length 68.3mm Width 60mm
Height 34.8mm Coil Weight 40g

Applications:

1.Proportional gas/fluid valves

2.Active vibration damping

3.Spring/force tester actuation

4.Light pressing / riveting

5.Micro-positioning of tools



The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding, robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment, dispenser, test equipment, textile machinery.



  13N Peak 34.3mm Stroke Rectangular Voice Coil Motor For Valve Control 0
