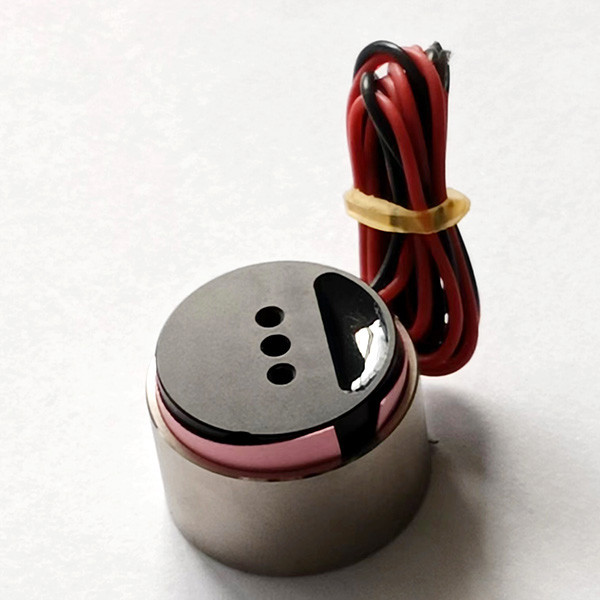

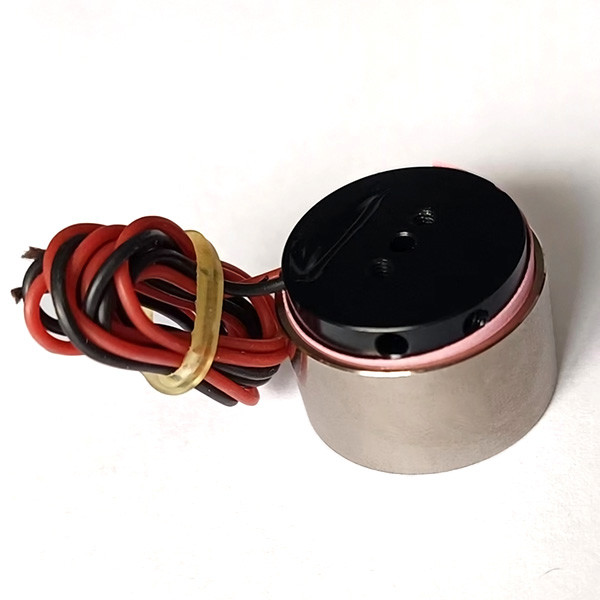

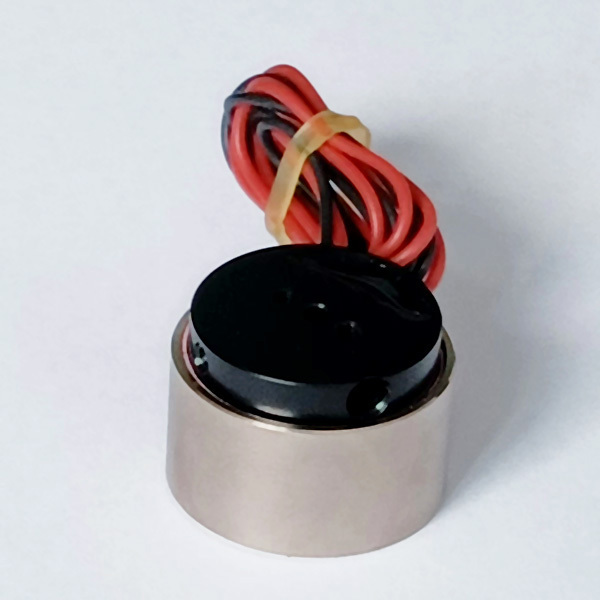

High Precision Micro Voice Coil Motor For Testing Equipment

  • High Precision Micro Voice Coil Motor For Testing Equipment
  • High Precision Micro Voice Coil Motor For Testing Equipment
  • High Precision Micro Voice Coil Motor For Testing Equipment
Lugar de origen China, Suzhou
Nombre de la marca SUPT MOTION
Certificación CE, ISO9001
Número de modelo Serie de VCAR
Cantidad de orden mínima 1 por ciento
Precio $110-$180
Detalles de empaquetado Embalaje personalizado, etc.
Tiempo de entrega 1-5 piezas, 5 días. > 20 piezas, a negociar
Condiciones de pago T/T
Capacidad de la fuente ser negociado

Éntreme en contacto con gratis las muestras y los vales.

WhatsAPP:0086 18588475571

wechat: 0086 18588475571

Skype: sales10@aixton.com

Si usted tiene alguna preocupación, proporcionamos ayuda en línea de 24 horas.

x
Datos del producto
Accidente cerebrovascular total 6.2m m Modelo VCAR0015-0062-00A
Fuerza máxima 15N Peso 14.8G
Solicitud Producto automático Color Plateado/negro
Fuerza continua (N) 6.5 Conmutación Cepillar
Función Proteger Totalmente encerrado Usar Industrias médica, de semiconductores, aeroespacial, de instrumentos de medición de precisión, autom
Tipo Micromotor
Deja un mensaje
Descripción de producto

Product Description:

SUPT MOTION's Micro voice coil motor (VCM), model VCAR0015-0062-00A, leverages its core advantages of high precision, fast response, compact size, and low power consumption. It is primarily used in test equipment scenarios requiring precise displacement control.
1. Micro-displacement Positioning Testing: In contact reliability testing of electronic components (e.g., sensors, connectors), it controls test probes to perform high-frequency, micro-amplitude reciprocating motion, simulating contact wear during long-term use.

2. Dynamic Performance Testing: In MEMS sensor (accelerometer, gyroscope) test equipment, VCMs deliver high-frequency, high-precision vibration excitation to generate standard acceleration/angular velocity signals, calibrating sensor dynamic response accuracy. In fatigue testing of miniature precision mechanisms (e.g., micro-gears, micromotors), they drive loads to achieve controlled high-frequency reciprocating loading, accelerating fatigue failure detection.

3. Optical Test Adjustment: In optical component (lens, prism) test equipment, VCMs drive elements for micrometer-level angular/positional fine-tuning, calibrating optical imaging accuracy and focal length consistency. In fiber optic communication component test benches, they control micro-displacement alignment of fiber end-faces to detect stability of optical signal transmission loss.

SUPT voice coil motors feature extensive applications, characterized by high acceleration, high-frequency response, and high precision. They represent an excellent choice for voice coil motor solutions, offering customization options and a diverse range of models to suit your needs.


Features:

The cylindrical VCM voice coil motor features:
High responsiveness, high acceleration, and a low-mass voice coil.
No cogging effect, zero magnetic hysteresis.
Simple structure, lightweight, excellent high-frequency response, and smooth operation.
Stroke: 1mm-63mm.
Thrust: 0.7N-1000N.

Type: Cylindrical voice coil motor, servo motor, brushed motor, Micro voice coil motor.

Product Parameters:

Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7

Applications:

SUPT MOTION Voice Coil Motor Applications:
1. Semiconductor Industry: Wiring, cutting, drilling, conveying systems, welding, robotics.
2. Field Valve Operation: Pneumatic valves for metering valves, pressure testing systems, chemical injection systems.
3. Micromechanics Industry: Feeding systems, micro-drilling, precision stamping.
4. Vibration Systems: Vibration tables, vibration platforms.
5. Medical field: Microinjection systems, respiratory equipment, diagnostic instruments.
6. Aerospace technology: Flight control systems, pilot feedback systems.
7. Commercial applications:Autofocus systems for microcameras.
8. Automation industry: Laser equipment, dispensing machines, test instruments.

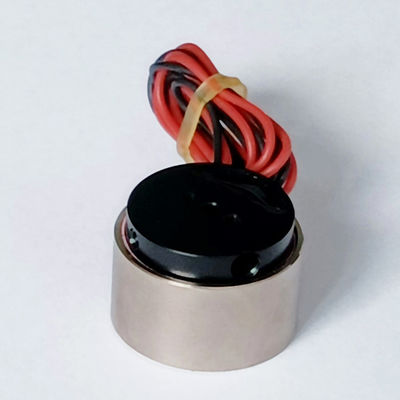

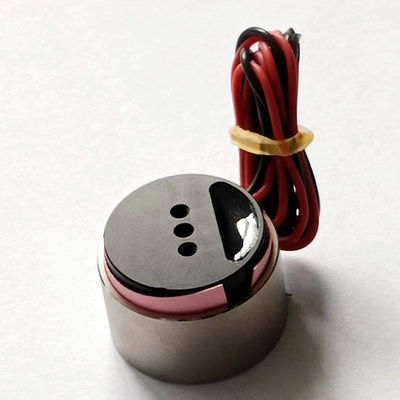

High Precision Micro Voice Coil Motor For Testing Equipment 0High Precision Micro Voice Coil Motor For Testing Equipment 1
