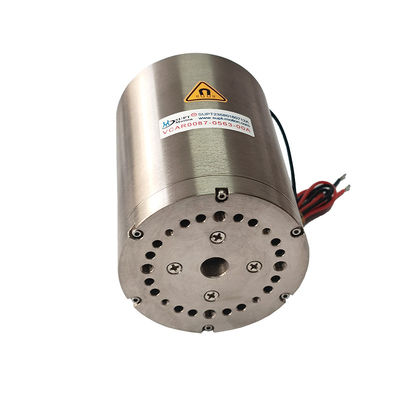

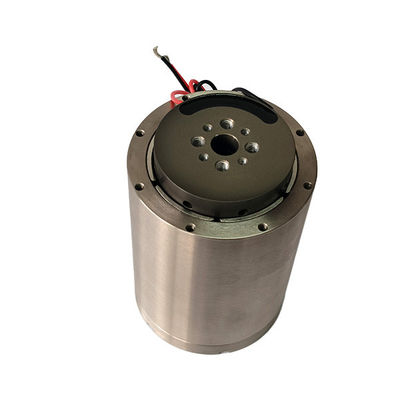

10.5N 10mm Stroke High Force Density Cylindrical VCM For Precision Dispensing

  • 10.5N 10mm Stroke High Force Density Cylindrical VCM For Precision Dispensing
  • 10.5N 10mm Stroke High Force Density Cylindrical VCM For Precision Dispensing
  • 10.5N 10mm Stroke High Force Density Cylindrical VCM For Precision Dispensing
Lugar de origen Jiangsu, China
Nombre de la marca SUPT
Certificación ISO9001
Número de modelo VCAR0011-0100-00A
Cantidad de orden mínima ≥3
Precio $150.00/pieces
Detalles de empaquetado Embalaje de cartón, etc.
Tiempo de entrega Entrega general de 5 a 7 días, rápida de 3 a 5 días, el volumen a negociar
Condiciones de pago T/T
Capacidad de la fuente Negociable
Datos del producto
Garantía 3 meses-1 año tipo Micromotor
Esfuerzo de torsión Las solicitudes Construcción Imán permanente
Modelo de producto VCAR0011-0100-00A Función de protección Totalmente cerrado
Velocidad (RPM) Alta velocidad Fuerza máxima ((N) 10.5
Velocidad máxima (mm) 10 Motor de corriente alterna ((V) 43.8
Peso del rotor ((kg) 20 Diámetro del estator (milímetro) 31
Fuerza continua ((N) 2.9
Resaltar

10.5N high force density VCM

,

10mm stroke cylindrical voice coil motor

,

precision dispensing voice coil motor
Deja un mensaje
Descripción de producto





Product Description




The SUPT MOTION VCAR0011-0100-00A voice coil motor achieves an excellent balance between thrust and stroke, delivering 10.5 N of peak thrust and a total stroke of 10 mm—all integrated into a stator with a diameter of just 31 mm. This high-thrust-density voice coil motor is designed for applications requiring stable force application, such as precision dispensing, jet valves, and Z-axes in automated assembly.
The voice coil motor delivers 2.9 N of continuous thrust at 25°C and can withstand repeated dispensing cycles without overheating. A back-EMF constant of 3.5 V/m/s provides predictable speed feedback. With a voice coil weight of 20 g and a maximum operating voltage of 43.8 V, this motor is suitable for high-voltage servo drives.
In precision dispensing applications—such as adhesives, solder paste, or medical fluids—stable needle thrust ensures uniform dispensing volumes and prevents substrate damage. The VCAR0011-0100-00A features a direct-drive, gearless design that eliminates the stick-slip forces and backlash associated with lead screws or pneumatic systems, providing smooth, precise, and proportional motion control. Its 10 mm stroke accommodates a wide range of workpiece heights.

This voice coil motor performs exceptionally well in soft-landing pick-and-place applications, enabling precise control of the applied force and gentle contact with precision components. It helps improve yield rates in applications such as semiconductor chip mounting and LED placement.
Its cylindrical housing facilitates installation on gantry systems or multi-head assembly machines. It is the preferred choice of original equipment manufacturers (OEMs) for reliable, high-cycle-rate linear voice coil motors.





Specifications:

Peak Force: 10.5 N

Continuous Force @25℃: 2.9 N

Total Stroke: 10 mm

Max Voltage: 43.8 V

Back EMF Constant: 3.5 V/m/s

Coil Weight: 20 g

Stator Diameter: 31 mm

Length: 26.8 mm



Technical Parameters:



Product Model Peak Force
(N)		 Continuous Force
at 25℃(N)		 Total Stroke
(mm)		 Max Voltage
(V)		 Back EMF Constant
(V/m/s)		 Weight of the coil
(g)		 Stator Diameter (mm) The Length
(mm)
VCAR0001-0064-00A 0.88 0.28 6.4 6.9 0.29 3 9.5 17.7
VCAR0001-0010-00A 0.73 0.42 1 4.8 0.6 2.7 24 11.2
VCAR00025-0127-00A 2.55 0.81 12.7 11.6 0.77 .6.6 12.7 24
VCAR0006-0039-00A 6.2 1.9 3.9 6.6 1.12 7.9 20 17.2
VCAR0006-0050-00A 6.2 2.6 5 15.7 3.57 8.2 25 18.2
VCAR0007-0040-00A 7.2 2.4 4 7.5 1.88 7 14.2 23
VCAR0007-0064-00A 7.8 2.5 6.4 9.9 1.5 7.2 19.1 23.8
VCAR0007-0127-00A 7.1 2.3 12.7 12.8 1.6 11.4 19.1 27
VCAR0011-0050-00A 11.4 2.1 5 11.8 3 11.2 24 17.2
VCAR0011-0100-00A 10.5 2.9 10 43.8 3.5 20 31 26.8
VCAR0013-0030-00A 13 3.5 3 16 3.5 12 25 21
VCAR0013-0072-00A 13 4.2 7.2 26.6 5.72 16.2 26.2 24.7
VCAR0014-0250-00A 14 4.5 25 26.5 3.9 35 25.4 44.2
VCAR0015-0062-00A 15 6.5 6.2 26.2 9.75 14.8 33 25.6
VCAR0022-0098-00A 22 6.6 9.8 24.7 5.8 20 34.1 35
VCAR0022-0448-00A 22 11.4 44.8 14.3 4 52 48 75.7
VCAR0025-0630-00A 25.3 8 63 50.6 5 68 31.8 83.1
VCAR0030-0150-00A 29.4 4.73 15 40.5 7.4 27 30 31
VCAR0032-0050-00A 32 8.9 5 29.3 7.1 48 40 41.7
VCAR0033-0099-00A 33 8 9.9 24.3 5.87 23.5 36 26.7
VCAR0033-0224-00A 33 13.5 22.4 26.7 6.8 69 58 72
VCAR0035-0090-00A 35 11 9 26.4 9 33 25.4 44.3
VCAR0035-0105-00A 35 15.6 10.5 11.9 5 91 50 67
VCAR0044-0040-00A 44 16.3 4 18.3 8.9 46.5 53 21.2
VCAR0044-0059-00A 44.1 17.7 5.9 14.3 8 43 46 22
VCAR0044-0075-00A 44 13.7 7.5 16.8 7.6 38.6 31.1 35.9
VCAR0044-0249-00A 44 11.7 24.9 44.9 8.88 65.9 38.1 51.3
VCAR0070-0149-00A 70 27.3 14.9 26.9 17.7 79 43 53.7
VCAR0075-0200-00A 75 30 20 26.2 15.2 65 70 38.7
VCAR0080-0129-00A 80 35 12.9 27.7 18 149 49 53.8
VCAR0087-0062-00A 87 21.67 6.2 34.5 12.7 45.2 43.1 34.9
VCAR0087-0563-00A 87 17.5 56.3 63.4 8.1 177 72 110
VCAR0105-0164-00A 105 35.4 16.1 20.1 11.5 150 60.4 40.4
VCAR0110-0380-00A 110 37.4 38 23.2 9 150 60.4 60.4
VCAR0113-0089-00A 113 35 8.9 31 17.5 125 73 27.5
VCAR0115-0065-00A 115 30.1 6.5 35 17.3 52 40 58
VCAR0130-0310-00A 130 40 31 30.4 20.5 280 75.6 56.5
VCAR0140-0150-00A 140 42.2 15 33.4 26.6 80 53 53.7
VCAR0210-0254-00A 210 66.2 25.4 56.6 28 230 43.7 111.8
VCAR0262-0112-00A 262 111 11.2 35.1 41 285 71 64
VCAR0262-0249-00A 262 112 24.9 28.2 26 785 66 109.1
VCAR0294-0498-00A 294 56.8 49.8 114 24.5 685 93 136.9
VCAR0436-0187-00A 436 147.6 18.7 40.7 40.7 648 80.4 91
VCAR0436-0250-00A 436 167 25 31.6 37.2 775 78.4 110
VCAR0436-0373-00A 436 142.6 37.3 38 29.8 1050 76 163
VCAR0980-0249-00A 980 605 24.9 41.5 104 1426 126 134.5
VCAR1351-0310-00A 1351 376.8 31 73.5 68 1071 110 143.7



Applications:

1.Precision jetting valves


2.Solder paste dispensing


3.Adhesive micro-dispensing


4.Soft-landing pick-and-place


5.Die attach Z-axis
