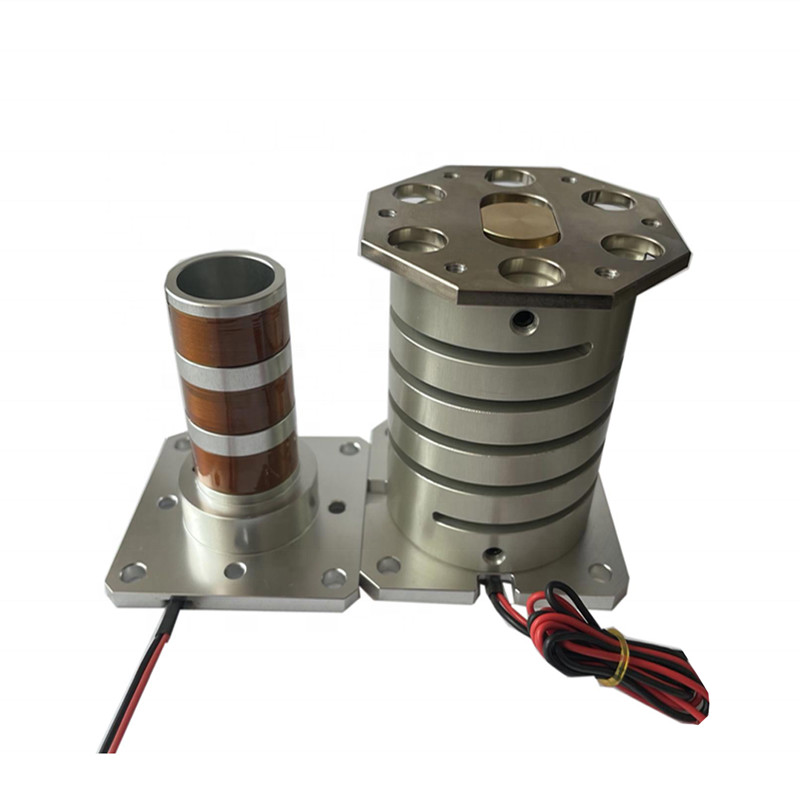

High Speed Micro Positioning Voice Coil Motor For Precision Inspection Equipment

  • High Speed Micro Positioning Voice Coil Motor For Precision Inspection Equipment
  • High Speed Micro Positioning Voice Coil Motor For Precision Inspection Equipment
  • High Speed Micro Positioning Voice Coil Motor For Precision Inspection Equipment
  • High Speed Micro Positioning Voice Coil Motor For Precision Inspection Equipment
Lugar de origen China,Suzhou
Nombre de la marca SUPT MOTION
Certificación ISO9001
Número de modelo Serie de VCAZ
Cantidad de orden mínima 3 piezas
Precio $120
Detalles de empaquetado Embalaje personalizado, etc.
Tiempo de entrega 1-5 unidades, 5 días. >20 piezas, a negociar
Condiciones de pago T/T
Capacidad de la fuente Para ser negociado
Datos del producto
Tipo de motor Motores de vibración Fuerza máxima 20.5N
Specifications modelo VCZA0020-0040-00A Certificaciones ISO9001-2000
Corriente inicial 2.6A Tensión nominal 25.9V
Potencia @ Fp 56,3W Ataque 3mm
Peso del actuador 110g Velocidad Alto
Fuerza continua 8.9N Tipo Micromotor
Deja un mensaje
Descripción de producto

Product Description:

The flexible feeding mechanism of voice coil motor solves the feeding problem that cannot

This motor is made of materials with high strength and good stability. Short response time, high vibration frequency, good consistency and stability. With special drive control technology, parts can move forward and backward, turn over, disperse and converge.
The feeding mechanism is integrated with adjustable backlight, which can complete vibration feeding, automatic control by visual system, and automatic control by machine picking system.

The SUPTMOTION VCAZ Series Micro Positioning Voice Coil Motor is engineered for precision inspection systems that require extremely accurate and stable motion control. Many inspection applications such as optical metrology, semiconductor measurement, and precision surface inspection require motion systems capable of achieving micron-level positioning accuracy.
The VCAZ Series linear voice coil motor provides an advanced direct drive motion solution that eliminates traditional mechanical transmission components. By using electromagnetic force to generate linear movement, the actuator delivers smooth motion with no backlash and minimal friction. This significantly improves positioning accuracy and motion stability compared with conventional linear actuators.

Because of its high precision, high reliability, and long service life, the VCAZ Series voice coil motor is widely used in precision inspection equipment, optical measurement instruments, and advanced metrology systems.

Features:

  • Ultra precise micro positioning

  • High dynamic response

  • Compact actuator design

  • Smooth frictionless motion

  • Long service life



Product Parameters:

Model Number VCAZ0020-0040-00A
Winding constant VALUE UNIT
DC resistance 10.2 Ω
Voltage @ Fp 25.9 V
Current @ Fp 2.6 A
Inductance 1.3 mH
Peak force 20.5 N
Continuous Force 8.9 N
Actuator constant 2.55 Ka
Power @ Fp 65.3 W
Total stroke 3 mm
Max winding temp 150 ºC
Actuator weight 110 g



Model Number VCAZ0010-0020-00A
Winding constant VALUE
DC resistance 9.5
Voltage @ Fp 14.8
Current @ Fp 1.6
Inductance 0.37
Peak force 4.2
Con force 2.2
Actuator constant 0.87
Power @ Fp 24
Total stroke 1.5
Max winding temp 150
Actuator weight 69

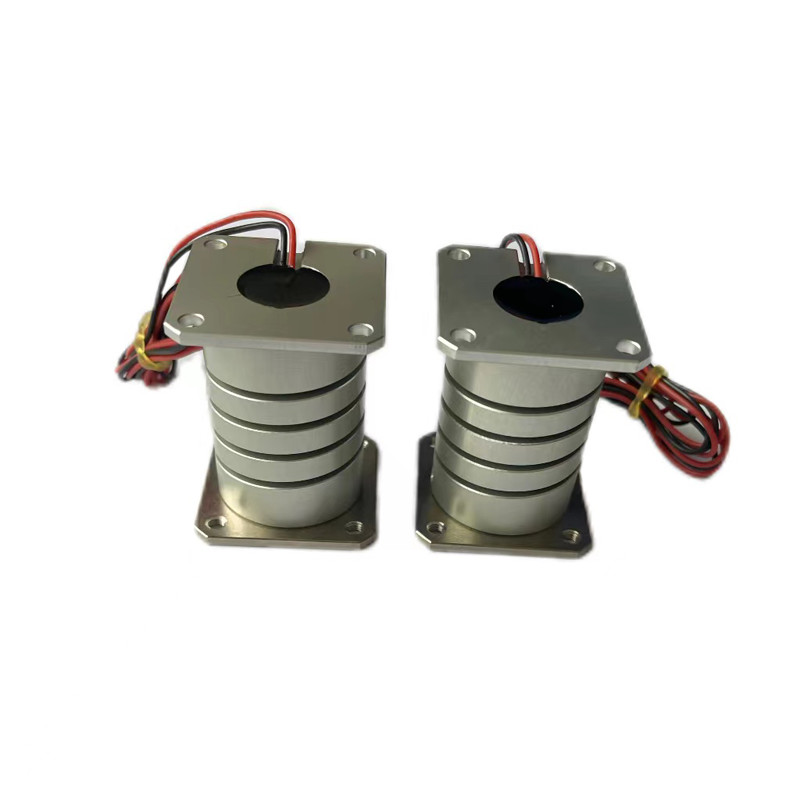

High Speed Micro Positioning Voice Coil Motor For Precision Inspection Equipment 0

Applications:

1.Precision inspection systems

2.Optical metrology equipment

3.Surface inspection machines

4.Semiconductor measurement systems

The main application of a voice coil motor:
1.Semiconductor industry:Wiring, cutting, drilling, transportation systems, welding,robotics.
2.Valve operation in the field:Type metering valves, pressure test systems, pneumatic valve chemistry
injection system.
3.Micro Machine industry:Feed systems, micro drilling, precision stamping.
4.Vibration System:Shaking table, vibration platform.
5.Medical field:Micro-injection system, respiratory equipment, testing equipment.
6.Aviation Technology:Flight control system, pilot feedback system.
7.Commercial use field:Computer cooling pump miniature camera auto focus system.
8.Automation industry:Laser equipment,dispenser, test equipment, textile machinery.

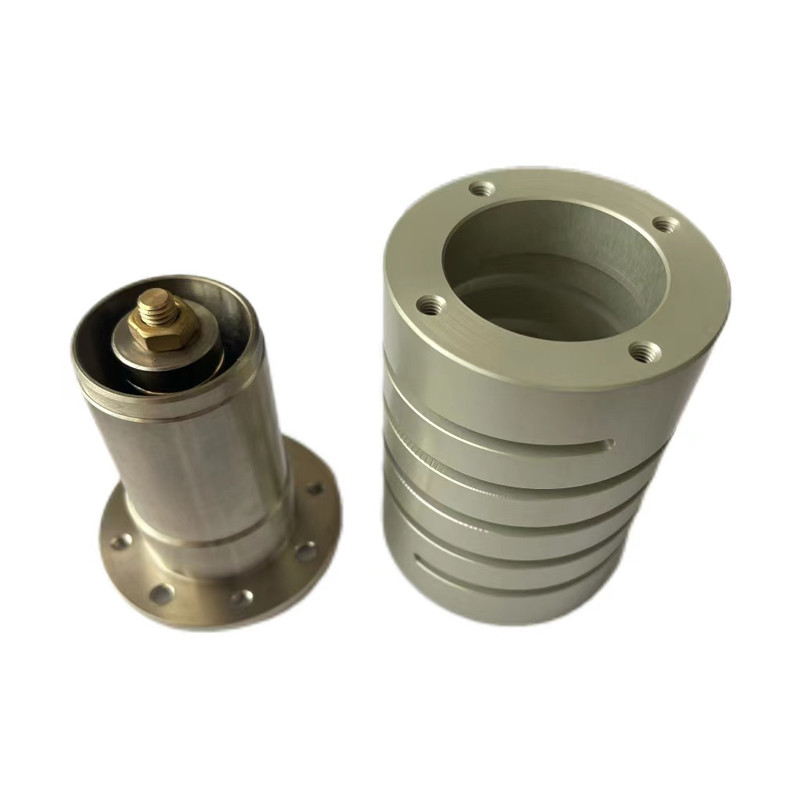

High Speed Micro Positioning Voice Coil Motor For Precision Inspection Equipment 1
